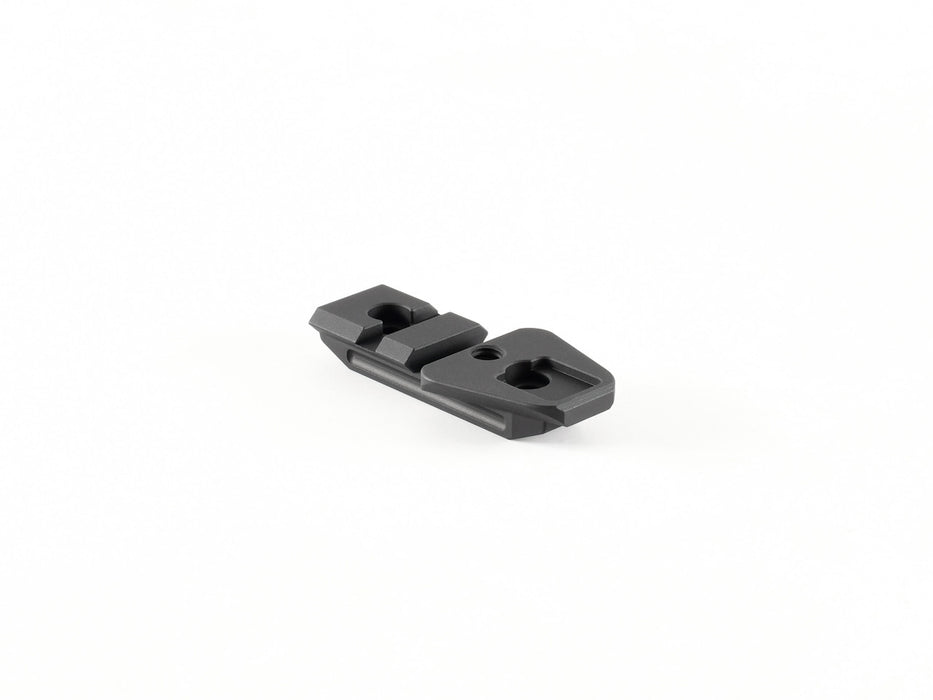

iRay-AC52 Pictail: The Ultimate Shoe for Instant RH25 Helmet & Weapon Transitions

• The iRay-AC52 Pictail Shoe converts your RICO MICRO RH25 thermal monocular into a versatile system ready for both helmet and weapon use. This Made in the USA component combines a standard dovetail interface with a Picatinny rail section, allowing you to move your optic from a helmet mount to a rifle in seconds without tools. It serves as the critical link for operators running the RH25 as a dedicated sight or a clip-on thermal device in front of a day optic.
• Swap from Helmet to Rifle in Seconds: This single mount integrates both a standard dovetail and a Picatinny rail interface into one piece of gear. You can instantly detach your optic from a Wilcox or KVC helmet mount and lock it onto your weapon's ADM MQD mount without swapping parts or reconfiguring your setup.
• Clip-On Thermal Capability with 1.5-Inch Offset: When paired with the ADM MQD mount, this shoe allows the RH25 to function as a clip-on thermal device in front of your day scope. This configuration shrinks the rear offset to just 1.5 inches and requires only 4 rail slots of forward space, making it perfect for short-barreled rifles (SBRs) and compact platforms.
• Ultra-Lightweight 6061 Aluminum Construction (0.8 oz): Machined from durable 6061 aluminum, this shoe adds less than an ounce to your kit. It handles the recoil and abuse of field operations while maintaining a secure zero, requiring only 15 inch-pounds of torque to attach to your device.

What are some common accessories to add to the iRay AC52?

Primary Thermal Optic Integration

• iRay RH25 V2: The iRay Pictail is the essential mounting adapter engineered specifically for the Rico Micro RH25 V2. By bolting the RH25 Pictail directly to this thermal monocular, you enable the device to interface with both standard helmet dovetails and Picatinny weapon mounts, unlocking its full multi-role capability.

Weapon Mounting & Clip-On Interface

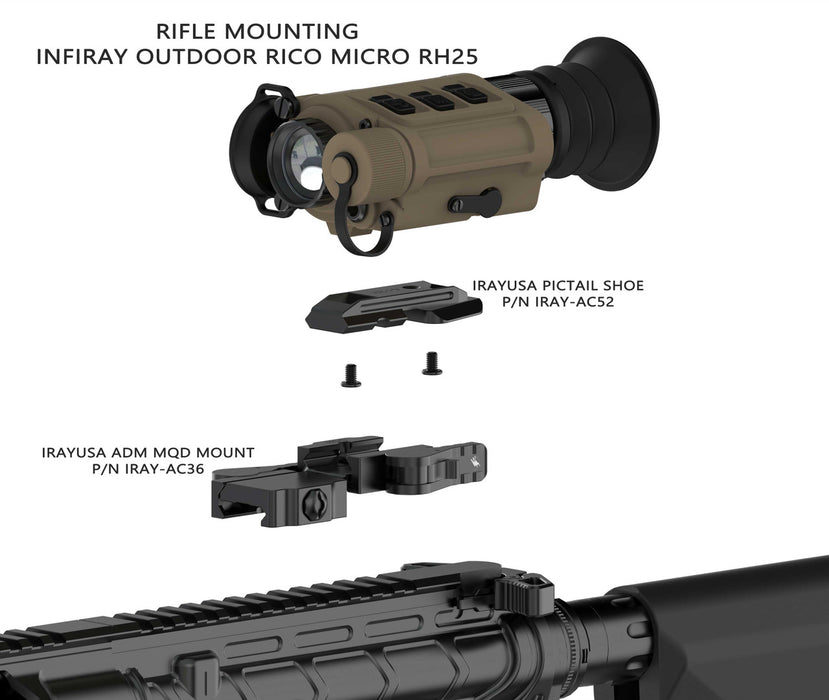

• iRay AC36: This American Defense Manufacturing (ADM) MQD mount acts as the weapon-side receiver for the iRay-AC52. The AC52 slides and locks directly into the AC36, enabling you to rapidly attach the thermal to a rifle rail and use it as a clip-on device in front of a day scope with a streamlined 1.5-inch offset.

iRayUSA Rico Micro Pictail Features & Specifications

The iRayUSA Rico Micro Pictail transforms the RH25 into a true multi-role asset by bridging the gap between helmet and weapon mounting systems. This American-made Rico Micro Pictail helmet/weapon shoe eliminates the need for tools or re-zeroing when moving your optic, allowing you to transition from navigating with a helmet mount to engaging targets on a rifle in seconds. By combining a standard dovetail with a specialized Picatinny rail section, it ensures your thermal monocular is always ready for the immediate mission, whether handheld, helmet-mounted, or weapon-mounted.

Key Features

• Integrates Helmet and Weapon Interfaces: Combines a standard dovetail for helmet mounts (Wilcox, KVC) and a Picatinny rail for weapon mounts into a single, low-profile unit.
• Enables Instant Transitions: Allows you to move the optic from a helmet to a rifle's ADM MQD mount without removing or swapping parts.
• Supports Clip-On Configuration: When paired with the ADM MQD mount, it shrinks the rear offset to just 1.5 inches, allowing the RH25 to sit in front of a day scope.
• Minimal Rail Space Required: Requires only 4 rail slots of forward space, making it ideal for compact platforms like SBRs.
• Broad Compatibility: Works seamlessly with the iRay ADM MQD Mount, Noisefighters Thermal Dovetail Adapter, and most standard dovetail receivers.

Specifications

• SKU: iRay-AC52
• Material: 6061 Aluminum Alloy
• Finish: Type 3 Hardcoated
• Weight: 0.8 oz (23g)
• Dimensions: 2.577" x 1.207" x 0.416"
• Mounting Torque: 15 inch-lbs (Pictail to Device)
• Origin: Made in the USA

What's in the box of the iRay Micro Pictail?

• (1) iRay RICO MICRO Pictail Helmet/Weapon Shoe
• (2) Mounting Screws

iRay Pictail Shoe FAQs

What is the main benefit of the iRay AC52?

This mount lets you move your thermal optic from your helmet to your rifle in seconds. You do not need any tools or extra parts to make the switch. It makes your gear much faster and easier to use in the field.

What is a dovetail interface?

A dovetail is a specific shape of metal connector used on night vision helmet mounts. This iRay Pictail shoe has a dovetail built into it so you can slide it directly into standard helmet mounts like those made by Wilcox or KVC.

What is a Picatinny rail?

Picatinny is the standard rail system found on most rifles and guns. This shoe has a rail section on it that lets you attach the optic to weapon mounts. This design combines both the helmet and rifle connection types into one simple piece.

How does this help with spacing or offset on my rifle?

 When you use this shoe with the ADM MQD mount, you can adjust where the optic sits. If you use it as a clip-on thermal in front of your day scope, it shrinks the rear spacing (offset) to just 1.5 inches. This saves space on your rifle rail.

Do I need a lot of rail space to use this?

No. In clip-on mode, you only need 4 slots of rail space in front of your day scope. This makes it perfect for shorter rifles or pistols where space is tight.

Is this mount heavy?

No, it is very light. It weighs only 0.8 ounces (23 grams), so it will not weigh down your helmet or your rifle.

What tools do I need to attach it?

You use the two included screws to attach the shoe to your optic. You should tighten them to 15 inch-pounds of torque. Once the shoe is on the device, you do not need tools to swap it between your helmet and weapon.

Where can I find the iRay Pictail for sale?

 You can find the iRay Pictail for sale directly at Atomic Defense. We currently have the AC52 for sale and ready for your next mission. As an authorized dealer of iRayUSA, we provide reliable customer support and ensure you receive top-quality gear.
