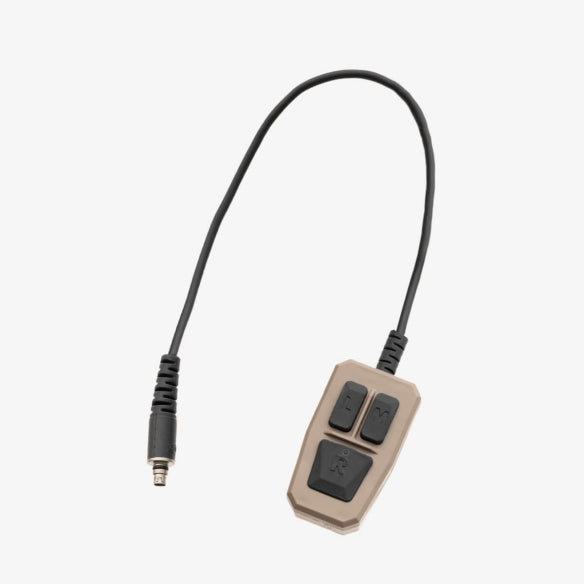

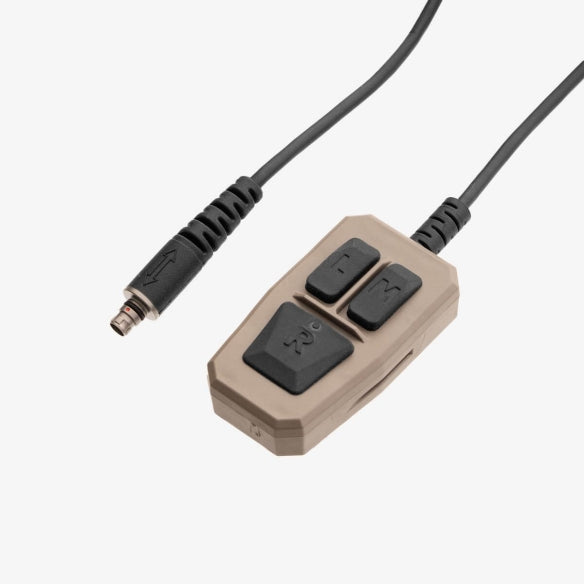

Maztech X4 Low-Profile Remote | Control Your X4 System Without Breaking Grip

• The Maztech X4 Low-Profile Remote gives you full control over your X4-FCS or X4-LRF without ever moving your hands from your weapon. This simple 3-button keypad plugs directly into your device, letting you operate it from any tactical position. Made in the USA, it is built to handle the toughest missions and keep you ready for action.
• Total Control from Any Position: Use the simple 3-button keypad to operate all functions of your X4 device without taking your hands off your weapon. This lets you stay focused on your target and ready to fire.
• Works in Extreme Weather from -40°F to 140°F: Designed to meet military standards, this remote is built to work in freezing cold and desert heat. It can even be in 3 feet of water for 30 minutes and still function perfectly.
• Ready in Seconds with No Batteries: Simply plug the remote into your X4 device and it's ready to use—no batteries are ever needed. It mounts anywhere on your firearm using the strong adhesive hook-and-loop strips that come in the box.
• Stays Secure with Haptic Feedback: The rugged ODU® connector locks in tight and won't come loose, even during weapon fire. When used with the X4-LRF, you feel a vibration on each button press, so you know it worked without looking.

What are some common accessories to add to the X4 Low-Pro remote?

Core X4 System Integration

• X4-FCS (Fire Control System): The remote plugs directly into the X4-FCS I/O port, allowing you to operate the system’s control knob and push-button functions without moving your hands from a ready position. This integration provides complete control over the fire control system from anywhere on your weapon.
• X4-LRF (Laser Rangefinder): The X4 Low-Profile Remote is fully compatible with the X4-LRF and is included with every unit. It allows for direct control of the (L)ase, (M)enu, and (R)ange buttons and enables haptic feedback, which provides a physical vibration to confirm a button press without needing to look at the device.

Advanced System Configuration & Mounting

• X4 FCS-to-LRF Cable: This cable connects the X4-FCS and the X4-LRF, creating a unified system. When the units are linked, the remote plugs into the X4-FCS and is used to control the most critical functions of both devices, including the LRF's lase and range features and the FCS's menu.
• X4 Diving Board Mount: This mount provides a stable, forward-mounting platform for core X4 system components like the X4-FCS. Securing the main device allows the operator to place the X4 Low-Profile Remote in the most advantageous tactical position for seamless operation.

X4 Low-Pro remote Features & Specifications

The Maztech X4 low-profile remote FDE provides a critical tactical advantage by allowing you to control your X4-FCS or X4-LRF from any position on your weapon. This eliminates the need to move your hands from a firing grip, helping you stay focused and ready. Its unique differentiators include optional haptic feedback that confirms commands without needing to look at the device, a rugged MIL-STD-810 design that works in extreme weather conditions, and a battery-free system that is always ready. The secure ODU® breakaway connector ensures the remote stays connected and functional, even under weapon fire.

Maztech MZT007 Key Features

• Versatile System Control: Plugs into the I/O port to control either the X4-FCS or the X4-LRF. When the FCS and LRF are linked, the remote controls functions on both devices.

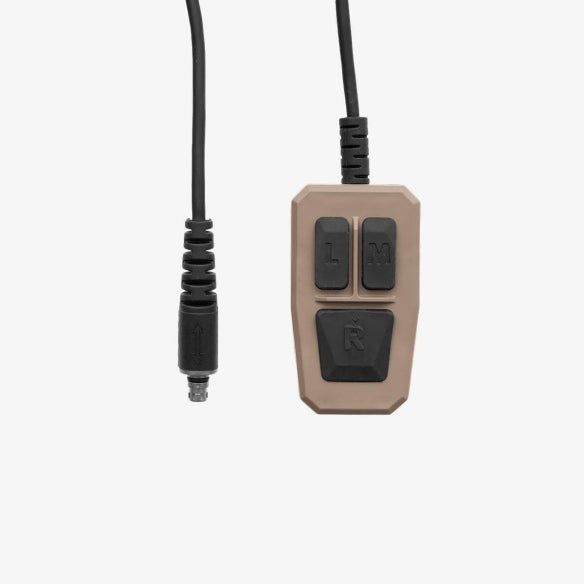

• Intuitive 3-Button Keypad: The simple keypad allows for control of all device functions. Each button supports single-click, double-click, and long-click inputs for advanced control.
• Haptic & Tactile Feedback: Buttons provide a tactile click response when pressed. When connected to the X4-LRF, the remote also provides haptic feedback that can be disabled if desired.
• Secure Breakaway Connector: Features a rugged ODU® breakaway connector that ensures a solid, reliable connection during firing and intense movement.

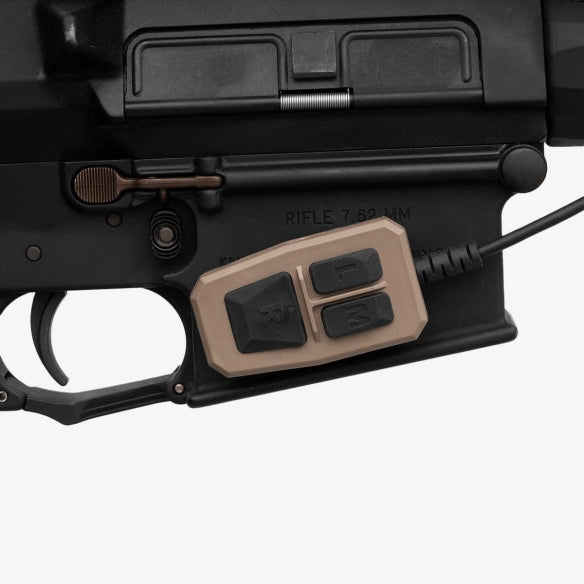

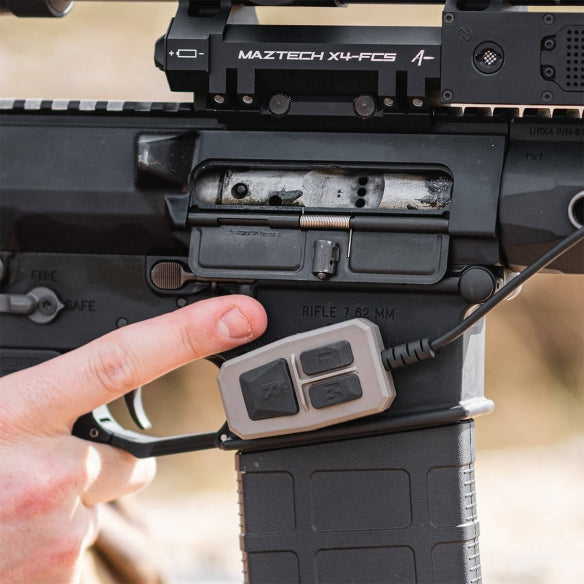

• Simple Mounting & Power: Mounts anywhere on your gear using the included adhesive-backed hook-and-loop strips. The remote requires no batteries and is powered by the X4 device it is plugged into.
• Made in the USA: Proudly designed and manufactured in the USA.

Maztech MZT007 Specifications

• Compatibility: X4-FCS™ and X4-LRF™
• Weight: 1 oz (28 g)
• Dimensions (L x W x H): 3 x 1.3 x 0.7 in (76 x 33 x 18 mm)
• Cable Length: Available in 12 in (305 mm) or 20 in (508 mm)
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Water Resistance: Withstands water immersion down to a depth of three feet for 30 minutes
• Connector: Rugged ODU® breakaway I/O Connector

What's in the box of the X4 Low-Pro remote?

• (1) X4 Low-Profile Remote with your choice of a 12" or 20" cable.
• (1) Set of adhesive-backed hook-and-loop strips for mounting.
• (1) Alcohol wipe for surface preparation.
• (1) Installation and User Guide.

Maztech X4 Low-Pro remote FAQs

Does the remote need batteries?

No, it does not need any batteries. It gets all its power by simply plugging into your X4 device.

How do I attach it to my firearm?

The remote comes with adhesive-backed hook-and-loop strips for easy mounting. An alcohol wipe is also included to clean the surface before you attach it. This allows you to place the remote anywhere you like.

Which devices does this remote work with?

 This remote is made to work with both the Maztech X4-FCS (Fire Control System) and the X4-LRF (Laser Rangefinder).

What is haptic feedback?

Haptic feedback is a slight vibration you feel when a button is pressed. When the remote is connected to an X4-LRF, this feature confirms your button press so you don't have to look down. You can turn this feature off if you don't want to use it.

Do the buttons always do the same thing?

 The button functions change based on the device it's connected to. With the X4-LRF, the buttons control the Lase, Menu, and Range functions. With the X4-FCS, they mimic the device's control knob and push-button.

Can I use the remote if I have both an X4-FCS and an X4-LRF?

Yes. When an X4-FCS and X4-LRF are linked together, you plug the remote into the port on the X4-FCS. From there, the remote will control key functions on both units, such as the LRF's laser and rangefinder, and the FCS's menu system.

Where can I purchase the Maztech X4 Low-Profile Remote?

The Maztech X4 Low-Profile Remote is available from Atomic Defense, an authorized dealer of Maztech products. For dependable support and access to the highest quality products, we recommend contacting Atomic Defense directly.
