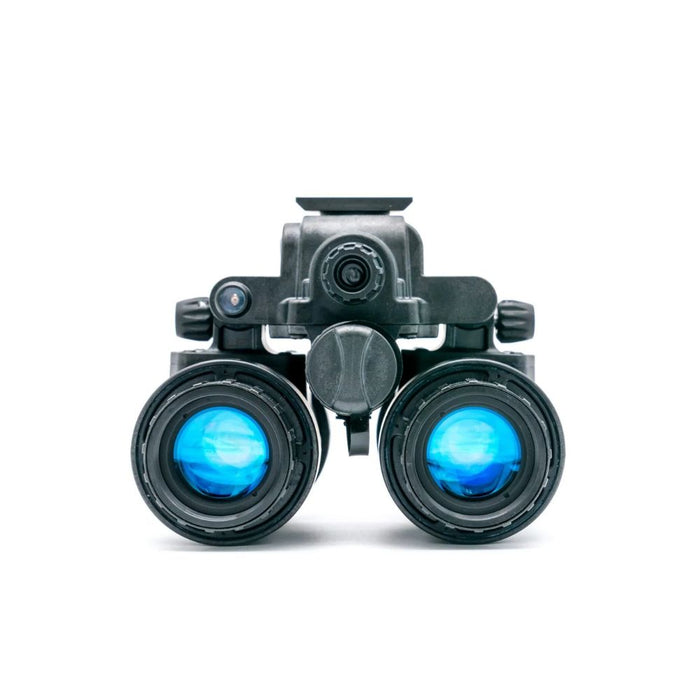

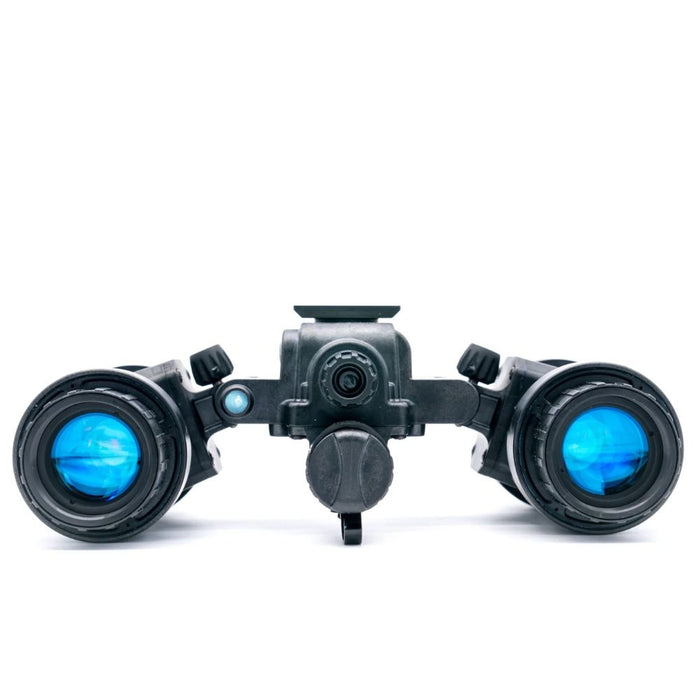

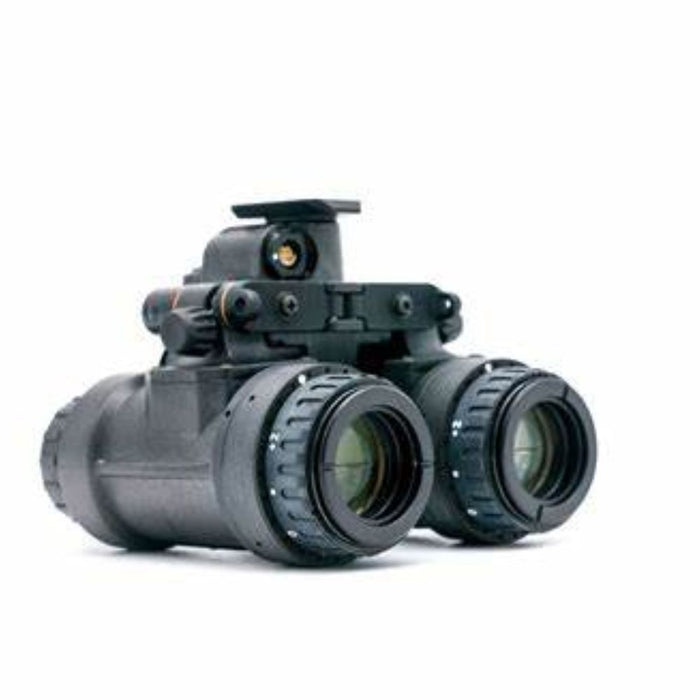

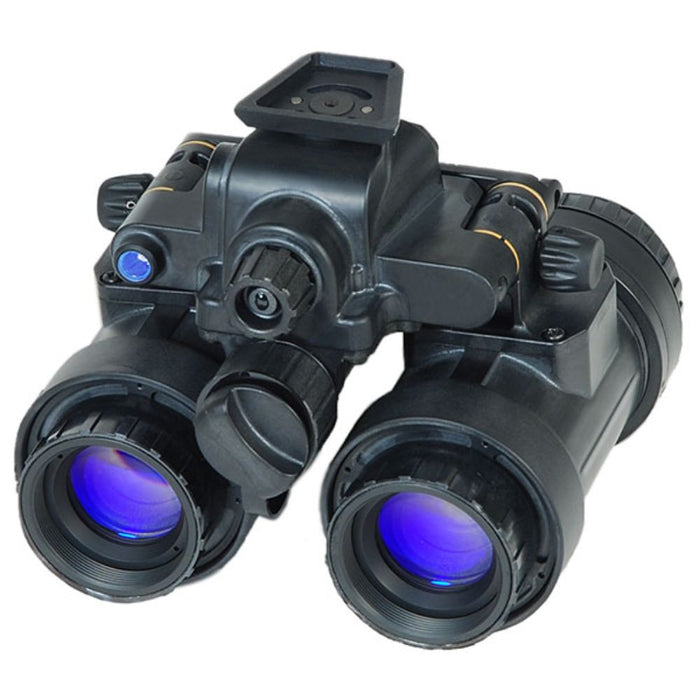

Unmatched Night Precision: BNVD-1531 Goggles with Superior FOM and Enhanced Features

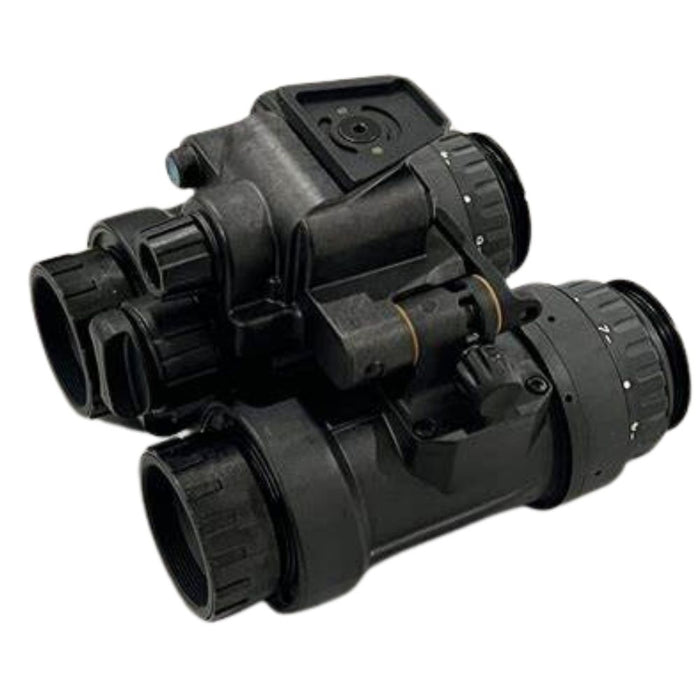

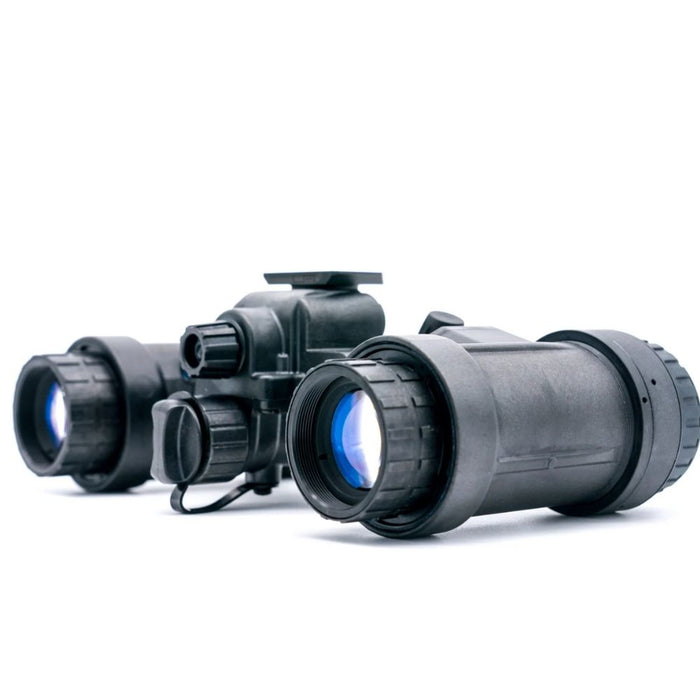

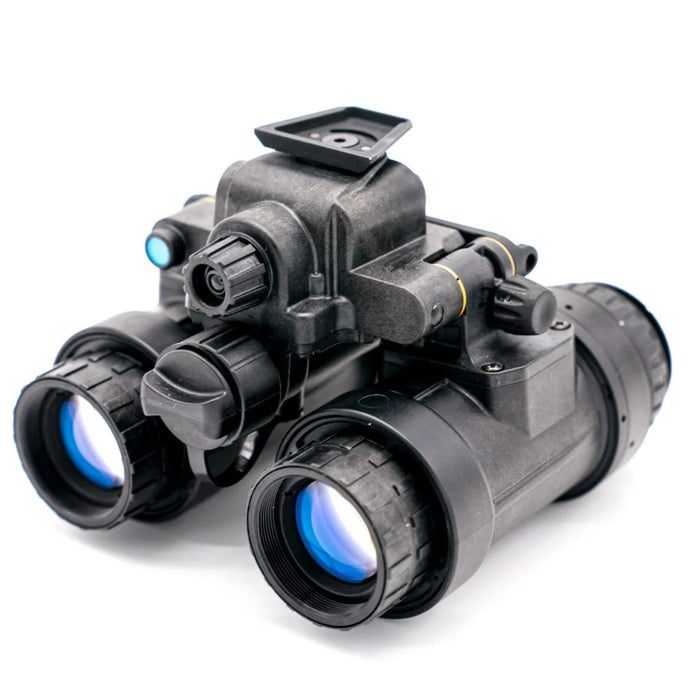

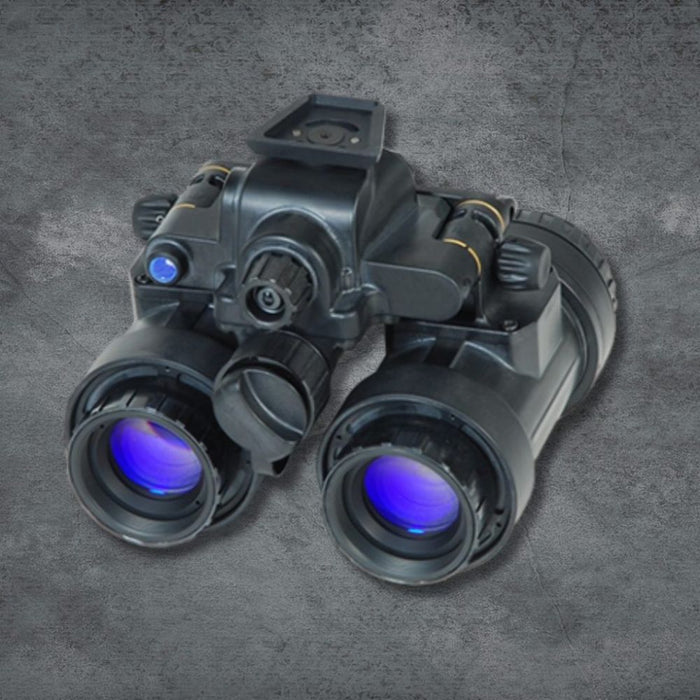

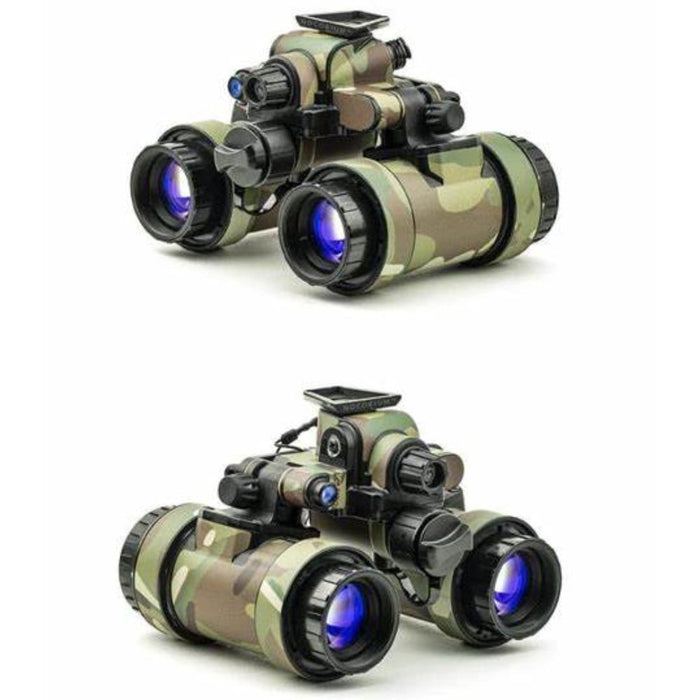

- The L3Harris BNVD-1531 is a state-of-the-art night vision goggle system designed to provide unparalleled clarity and performance in low-light conditions.
- Key features include articulating pods that allow for easy adjustment and comfortable fit, ensuring that users can operate efficiently and effectively in various situations.
- Equipped with an IR illuminator, users gain enhanced visibility in complete darkness, enabling operations in environments without any natural or artificial light.

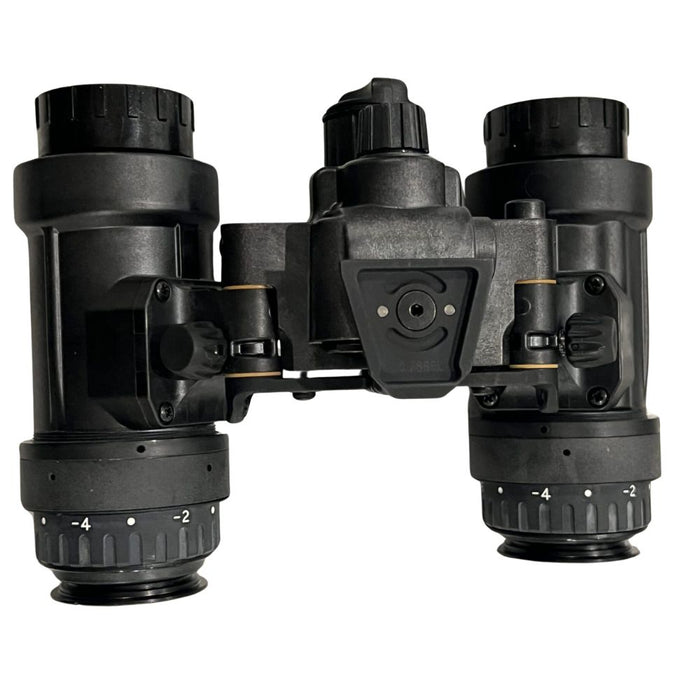

- Adjustable diopters provide personalized vision adjustments, making the device versatile for users with different visual requirements.
- Waterproof capability up to 66 feet, allowing for operation in adverse weather conditions or in aquatic environments without risk of damage.
- A significant benefit is the impressive 15+ hours of battery life on a single AA battery, offering extended use without the need for frequent battery replacements.
- With a lightweight design of only 538 g (19 oz), it minimizes user fatigue during prolonged use, enhancing operational readiness and mobility.
L3Harris BNVD 1531 Review
What are some common accessories to add to the L3Harris BNVD-1531?
- Night Vision Mounts A variety of mounts are available to fit different helmet styles and personal preferences, ensuring that you can customize your setup for maximum comfort and functionality.
- NVG Bags & Cases Specialized bags and cases protect your night vision devices during transport and storage, keeping them safe from physical damage and environmental conditions.
- Night Vision External Battery Pack Extend the operational time of your night vision device with an external battery pack, ensuring long-lasting power during extended missions or activities.
-
Team Wendy Helmets: High-quality helmet compatible with night vision mounting systems.
L3Harris BNVD-1531 Features and Specs
The L3Harris BNVD-1531 Night Vision Goggle is a state-of-the-art device designed for superior night vision performance. It boasts a minimum FOM (Figure of Merit) of 2376+, ensuring high-resolution imaging under low light conditions. This model is equipped with articulating pods, an IR illuminator for enhanced visibility, and adjustable diopters to accommodate different users. The goggles are waterproof, making them suitable for a wide range of environments, and offer approximately 15+ hours of battery life with a single AA battery.
BNVD 1531 Key Features
- Articulating Pods: Allows users to customize their viewing angle for optimal comfort and visibility.
- IR Illuminator: Enhances night vision capability by providing additional light in dark environments.
- Adjustable Diopters: Accommodates users with varying visual acuity.
- Waterproof: Enables operation in wet conditions and underwater environments up to 66 feet.
- Extended Battery Life: Offers over 15 hours of operation on a single AA battery.
BNVD 1531 Technical Specifications
- Field of View: 40°
- Magnification: 1x
- Diopter Adjustment: -6 to +2 Diopters
- Eye Relief: 25mm
- Submersible up to 66 feet
- Objective Lens: 27mm, f/1.2
- Focus Range: 18″ to infinity
- Power Source: 1 AA Size Battery
- Operation Time: 15+ hours
- Weight: 538 g (19 oz)

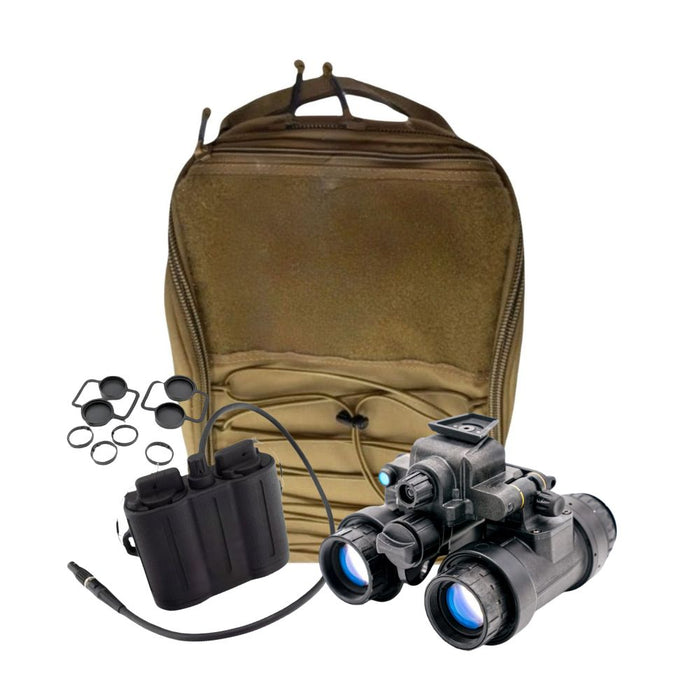

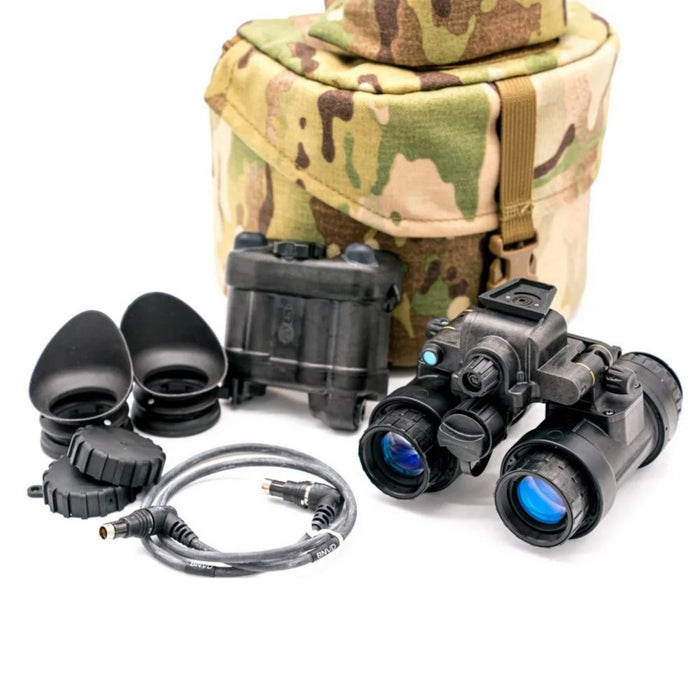

What's in the box of the L3Harris BNVD-1531?
- (1) Night Vision Goggle unit (BNVD-1531)
- (1) pair of Bikini covers for lens protection
- (1) Soft carrying bag for storage and transport
- (1) Battery pack and connecting cable
- (1) Comprehensive accessory kit
- (1) Detailed specification sheets
L3Harris BNVD-1531 FAQs
How long will the battery last in the BNVD 1531 night vision goggle?
The BNVD-1531 night vision goggles are designed for efficiency and longevity, providing approximately 15+ hours of battery life on a single AA battery.
Are the BNVD-1531 goggles waterproof?
Yes, the BNVD-1531 goggles are waterproof and submersible up to 66 feet, ensuring durability and reliability in various operational conditions.
Can the diopters be adjusted on the BNVD-1531?
Yes, the BNVD-1531 features adjustable diopters ranging from -6 to +2, allowing users to customize the focus to their individual vision requirements.
Is an IR illuminator included with the BNVD-1531?
Yes, the BNVD-1531 night vision goggles include an IR illuminator to enhance visibility and performance in complete darkness.
What is the weight of the BNVD-1531 goggles?
The BNVD-1531 goggles weigh 538 g (19 oz), making them lightweight and comfortable for extended use.
What is the correct way to write the product name? Is it l3 bnvd 1531, l3 bnvd-1531, l3harris bnvd-1531 or l3 1531 bnvd?
The correct way to write the product name is "L3Harris BNVD-1531." This format accurately reflects the brand (L3Harris), the product category (BNVD), and the specific model number (1531).
What are 20UA intensifier tubes and how do they differ from other models?
The term "20UA" refers to a high-performance night vision intensifier tube from L3Harris, designed for aviation use. These tubes have stringent quality standards for dark spots, allowing larger spots only in the outermost zone (Zone 3), ensuring a clearer image.
Key Features of 20UA Tubes:
-
Strict Spot Tolerance: Larger dark spots (> .003 inches) are only allowed in Zone 3, ensuring high image clarity.
-
High Performance:
-
Center Resolution: 64 lp/mm minimum
-
Figure of Merit (FOM): 2376 minimum
-
Halo: 1.0 maximum
-
Equivalent Background Illumination (EBI): 2.5 maximum
L3 20UA tubes offer excellent image quality with minimal imperfections, making them ideal for aviation and other high-demand applications.
Why is it not recommended to use rechargeable batteries in BNVD-1531?
Rechargeable batteries are prone to leaking, which can cause significant damage to the sensitive electronics and components within night vision goggles. This leakage can result in malfunctions or even complete failure of the device.
What type of batteries should I use for my BNVD-1531?
It is highly recommended to use lithium batteries for night vision goggles. Lithium batteries are more stable and less likely to leak, ensuring the longevity and optimal performance of your night vision equipment.
What should I do if my BNVD-1531 doesn't turn on?
If your BNVD-1531 are not turning on, follow these steps:
- Check the Battery Orientation: Ensure that the batteries are inserted correctly. The direction of the batteries must match the device's specified orientation.
- Replace with New Batteries: If the batteries are inserted correctly and the device still does not power on, replace them with brand new batteries. Often, the issue is due to depleted batteries.
What are dark spots on intensifier tubes, and what are the different zones?
Dark spots are small black dots you might see when looking through night vision goggles (NVGs). They occur because of tiny imperfections in the intensifier tube, which helps amplify light to let you see in the dark. These spots don't usually affect how well you can see. Intensifier tubes have three zones:
-
Zone 1: The central area where you look the most. It's the clearest part.
-
Zone 2: The middle ring around Zone 1. This zone might have a few more imperfections.
-
Zone 3: The outer edge. This zone can have the most imperfections, but it doesn't affect your view much because it's on the edges.
The fewer dark spots an NVG has, the higher its quality and price. NVGs with almost no dark spots are typically more expensive because they have better intensifier tubes. However, a few dark spots are normal, and as long as they don't block your view too much, your NVGs should work just fine.
