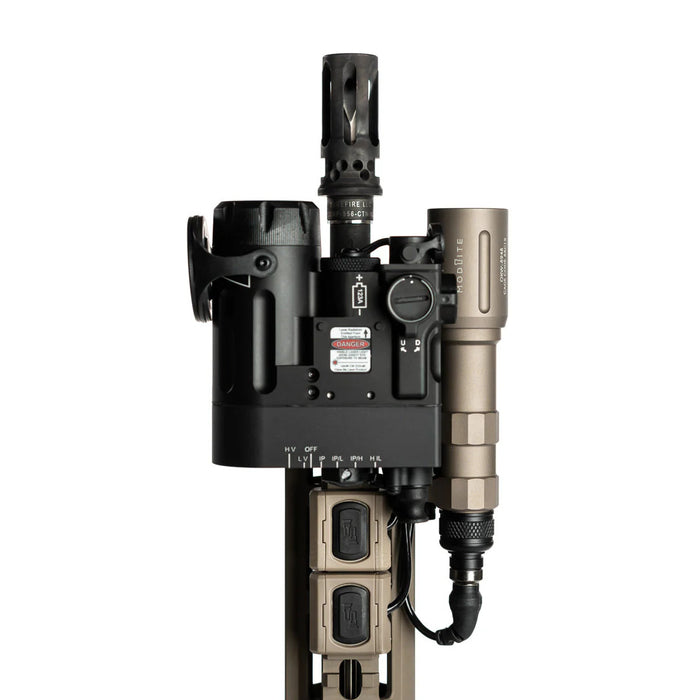

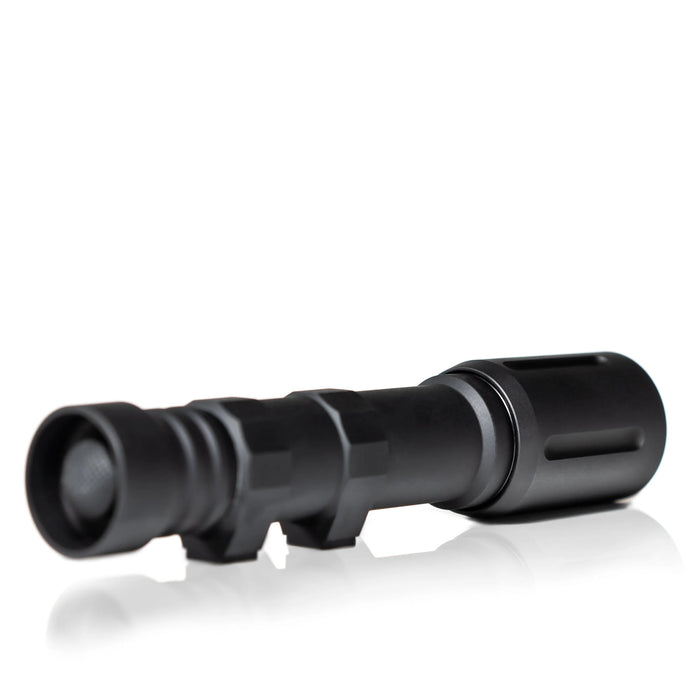

Modlite PLHv3 18650 Rifle Light Package: The Duty Rifle Light for the Perfect Balance of Throw and Flood

• The Modlite PLHv3 18650 Rifle Light Package is a complete, duty-ready rifle light built for close-quarters and intermediate-range engagements. When comparing top-tier rifle lights, this system stands out by delivering a precise balance of flood and throw, making it the best rifle light for indoor room clearing and pairing with unmagnified red dot optics.
• Identify Targets with 1,500 Lumens & 60,000 Candela: This system cuts through dark alleys and heavily tinted vehicle glass with a piercing central beam while lighting up the entire periphery of a room. The 5700K cool white daylight tint defeats disruptive background lighting like high-intensity streetlamps or oncoming headlights, so you can clearly track threats in chaotic environments.
• Survives Violent Recoil from a 7.62 SCAR 17: The internal electronics use fully potted drivers sealed entirely in a specialized, non-conductive epoxy resin to stop kinetic shock damage. This manufacturing process guarantees your light will withstand deployment on standard duty carbines, heavy-caliber battle rifles, and shotgun platforms without electronic failure.
• Power Through Shifts with Dual-Fuel 18650 Capability: The package runs primarily on a rechargeable 18650 lithium-ion cell, providing a substantial energy reserve for up to 75 minutes of total runtime on high mode. In logistical emergencies or austere environments, you can quickly swap to two disposable CR123 primary batteries to keep your weapon system online, though raw lumen output will be reduced.
• Resist Extreme Heat with 98% Clear BOROFLOAT Glass: The ultra-clear borosilicate glass lens handles rapid temperature changes without shattering, easily surviving prolonged operation near hot suppressors followed by sudden submersion in freezing water. It allows approximately 98% light transmittance, ensuring the protective barrier pushes nearly 100% of the generated light straight to the target without acting as a parasitic drain.

Modlite PLHv3 18650 Rifle Light System Overview

Accessories for the Modlite PLHv3 18650 Rifle Light

Hardware Integration for the PLHv3 Rifle Light

• Modlite Mounts: Our lights require a mount sold separately, so you can select the exact hardware that best fits your specific needs. You can find these mounts to prevent zero shift under heavy recoil in our Modlite Mounts collection

Optical Protection for the PLHv3 System

• CLENS Protector For Modlite: This protective layer mounts over the light's front bezel to prevent thick carbon buildup and debris from sticking to the lens during heavy firing. It ensures your light maintains its maximum beam intensity and protects the primary glass from permanent damage.

System Adaptability for the 18650 Platform

• Modlite Boost Adapter: This component modifies your existing light body to support different electronic configurations and voltage outputs. It enhances your rifle light's overall functionality, enabling you to quickly adapt the system to meet specific tactical requirements.

Modlite PLHv3 18650 Rifle Light Features & Specifications

The Modlite PLHv3 18650 Rifle Light Package is the ultimate duty light for operators who require a precise balance of intense throw and wide peripheral flood. Tailored specifically for indoor environments and compatible with unmagnified optics like red dots, it delivers a massive 1,500 lumens and 60,000 candela to easily identify threats, navigate rooms, and punch through disruptive background lighting.

Key Features

• Optimized Beam Profile: Delivers the perfect blend of piercing hotspot and bright peripheral corona, preventing tunnel vision in close-quarters environments.
• Dual-Fuel Capability: Runs primarily on a high-drain 18650 lithium-ion cell for maximum output, but accepts two CR123 primary batteries in a logistical emergency (with a reduction in performance).
• Recoil-Proof Electronics: Internal drivers are fully potted in solid epoxy resin and rigorously tested to withstand the violent kinetic shock of a select-fire SCAR 17.
• High-Contrast Emitter: Features a Cool White 5700K tint that cuts through photonic barriers like streetlamps and heavy smoke with daylight-equivalent clarity.
• Rugged Construction: Machined from 6061-series aluminum and finished with Mil-Spec Type III hardcoat anodizing for extreme abrasion and corrosion resistance.
• Thermal Shock Resistance: Utilizes an ultra-clear BOROFLOAT glass lens that allows 98-99% light transmittance while refusing to shatter under rapid temperature changes.
• Complete Package: Includes the PLHv3 light head, 18650 rifle body, constant/momentary clicky tailcap, one Modlite 18650 battery, and a USB-C charger.
• Made in USA: Proudly manufactured and assembled entirely within the USA and backed by a lifetime guarantee.

Specifications

• Luminous Flux (Total Output): 1,500 Lumens
• Luminous Intensity (Throw): 60,000 Candela
• Primary Power Source: 1x 18650 Lithium-Ion Protected Cell (Included)
• Alternate Power Source: 2x CR123 Primary Lithium Cells
• Operational Weight (with battery): 5.3 oz
• Dry Weight (without battery): 3.6 oz
• Body Diameter: 1.0 inch (excluding head)
• Head Diameter: 1.25 inches maximum
• Length (No Tailcap): 4.75 inches
• Length (With Clicky Tailcap): 5.375 inches
• Length (With Surefire UE to MBL Plug): 6.5 inches
• Length (With Surefire DS00 to MBL Plug): 7.0 inches
• Color Temperature: 5700 Kelvin
• Waterproof Rating: IPX8 (Submersible up to 2 meters for almost 24 hours)

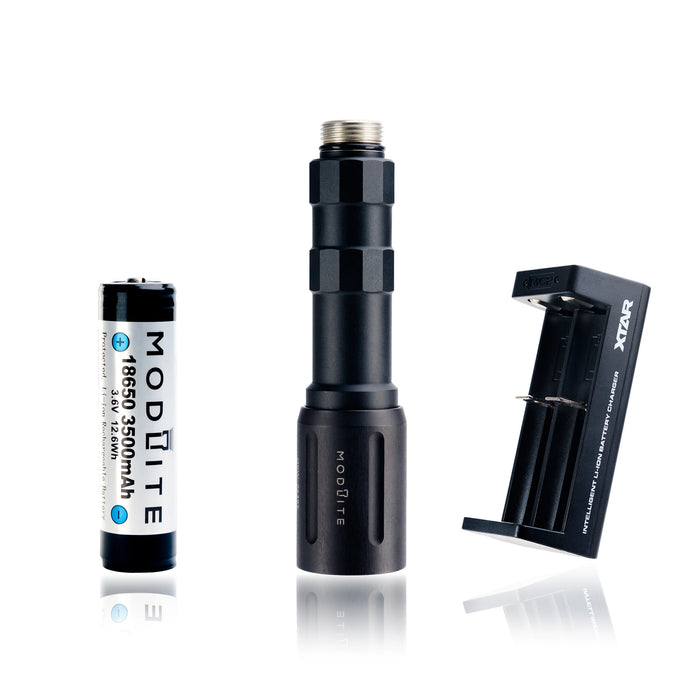

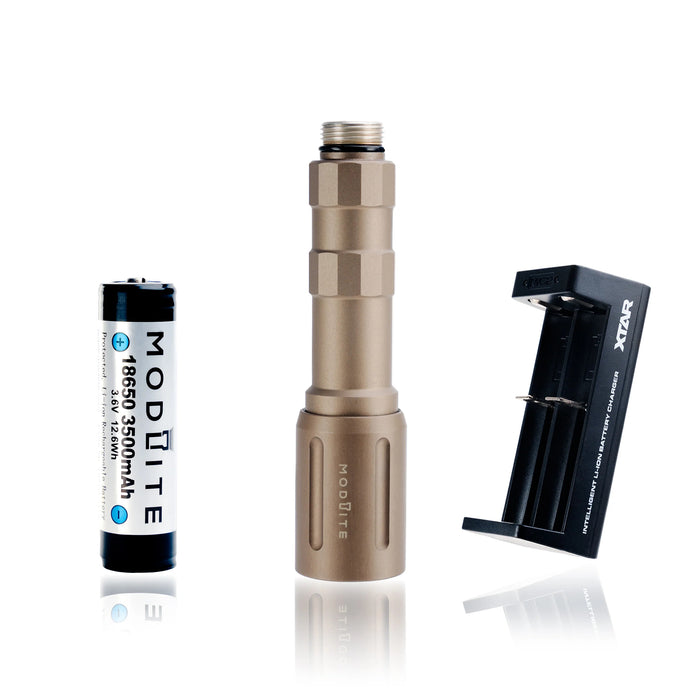

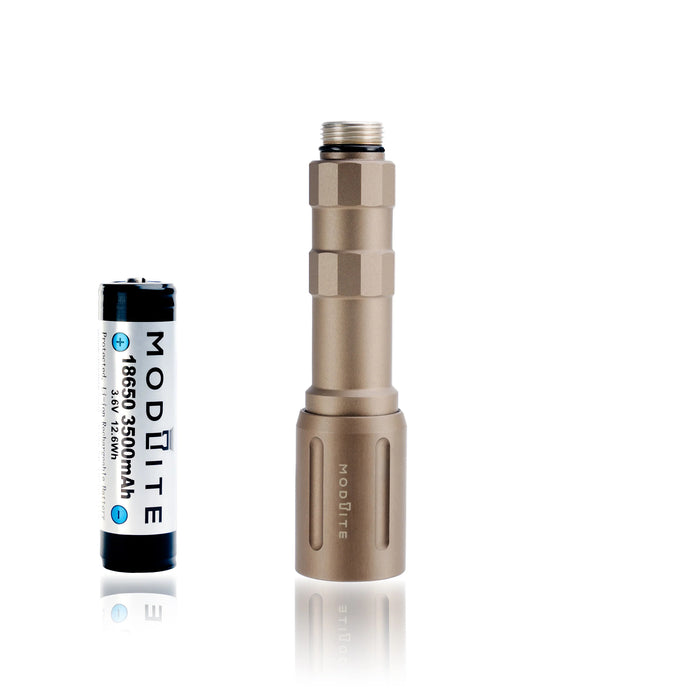

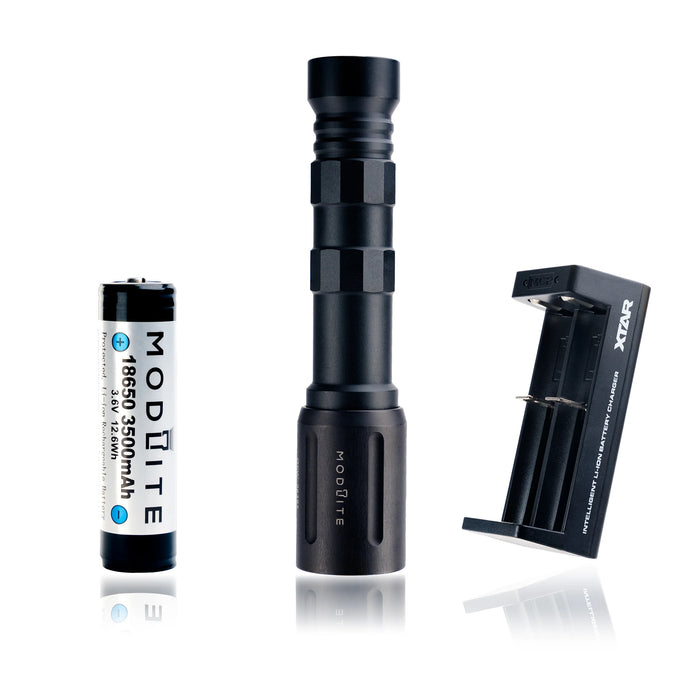

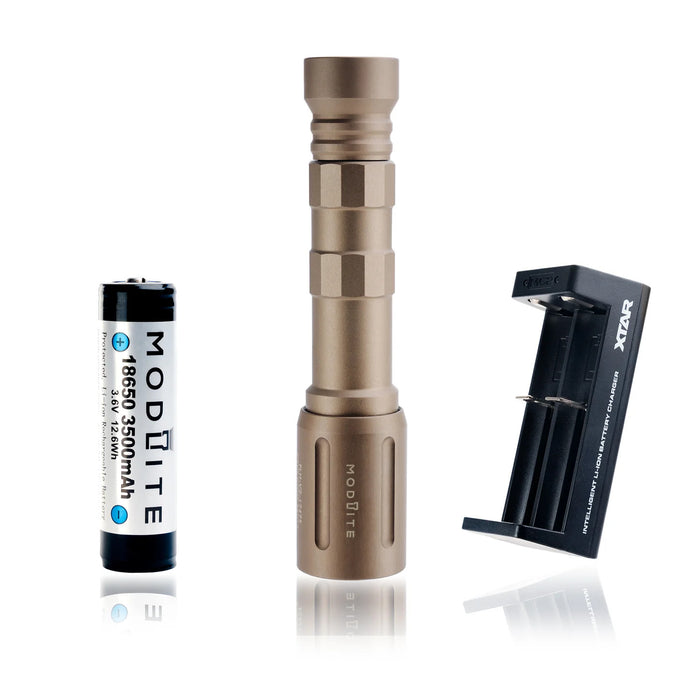

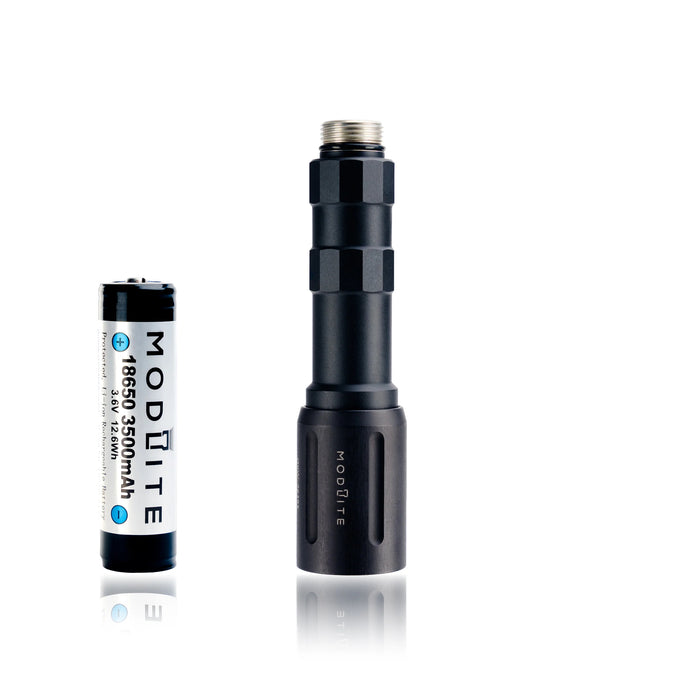

Modlite PLHv3 18650 Rifle Light Box Inclusions

The Modlite PLHv3 18650 Rifle Light Package arrives as a fully complete system, requiring only your preferred mounting hardware to be operational, along with your preferred inclusion of the tailcap and charging unit. The box includes:

• (1) PLHv3 Light Head
• (1) Dedicated 18650 Rifle-Mounted Body
• (1) Modlite 18650 Lithium-Ion Battery
• (1) Constant/Momentary Clicky Tailcap (Optional)
• (1) XTAR USB-C MC2 Charging Unit (Optional)

Modlite PLHv3 Rifle Light Package Frequently Asked Questions

What does "throw and flood" mean?

Throw is the distance over which a beam of light shines, measured in candela. Flood is how wide the light spreads, measured in lumens. This light mixes both perfectly. This means you can see far down a hallway and also clearly see into the corners of a room at the same time.

Does this light come with a way to attach it to my rifle?

No, you need to buy a mount separately. We do this so you can pick the exact mount that fits your specific gun and your personal needs.

What does "Dual Fuel" mean for the battery?

It means the light can use two different kinds of batteries. It comes with one strong 18650 battery that gives you the brightest light. But if you run out of power, you can use two standard CR123 batteries instead. Just know that the light will not be as bright when using the CR123 batteries.

Why is it important that the inside parts are "fully potted"?

A gun shakes violently when you shoot it. This rough shaking can break the wires inside regular lights. "Potted" means the inside parts are sealed in a tough, solid glue. This stops the light from breaking, even when put on big guns that kick very hard.

Can I use a remote wire switch with this light?

Not with the button cap that comes in the box. The included tail cap is just a simple clicker switch. If you want to use a remote button on a wire, you will need to buy a special tail cap, like the Unity Tactical GASCAP.

Why might the color finish of my light look a little uneven?

We applied a very hard coating to the metal to prevent it from being scratched or rusted. Because of the strong chemicals used to make this hard armor, the color can look a little different from one part of the light to the next. This is normal and means you have a very tough light.

What is the difference between 18650 and 18350 light setups?

Both light setups are great choices, depending on what you need for your gun. The best choice depends on your setup, preferences, and how you plan to use the light.

Can I use Surefire tailcaps and switches with my Modlite?

Yes. Modlite bodies work perfectly with Surefire tailcaps and pressure switches. This makes it very easy to mix and match with parts you might already own.
