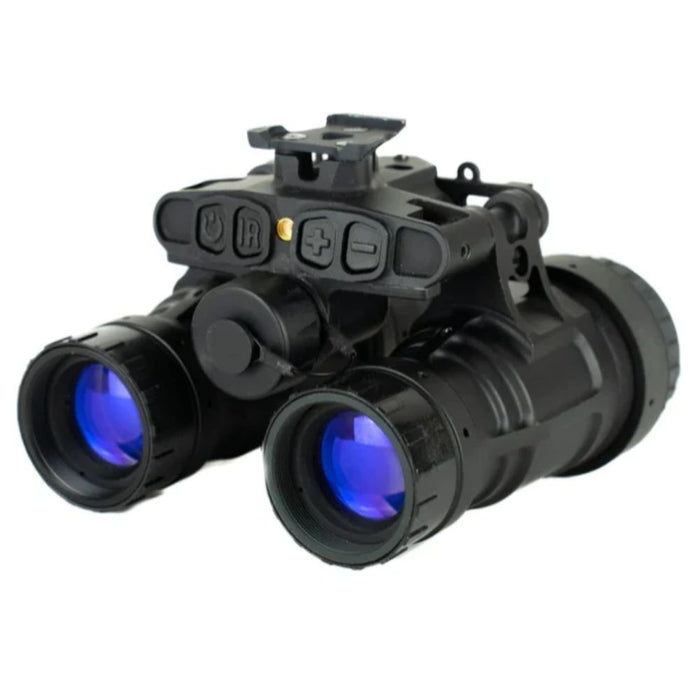

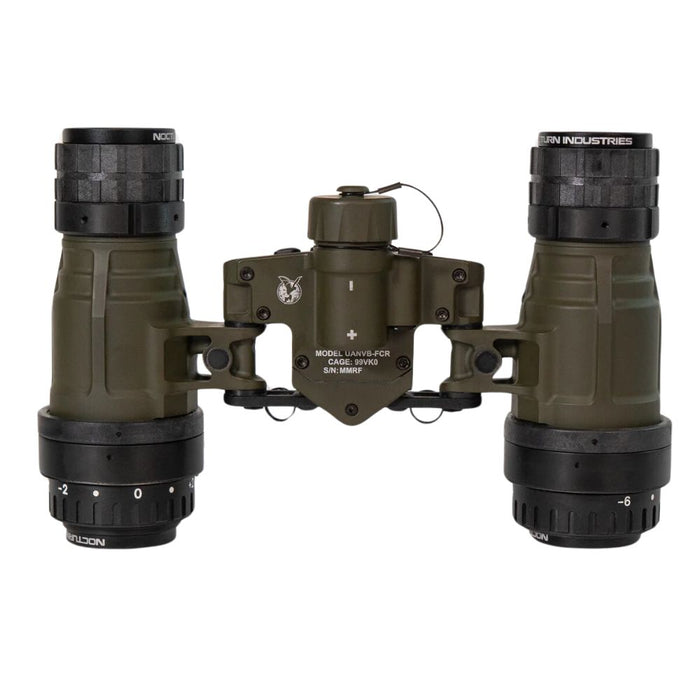

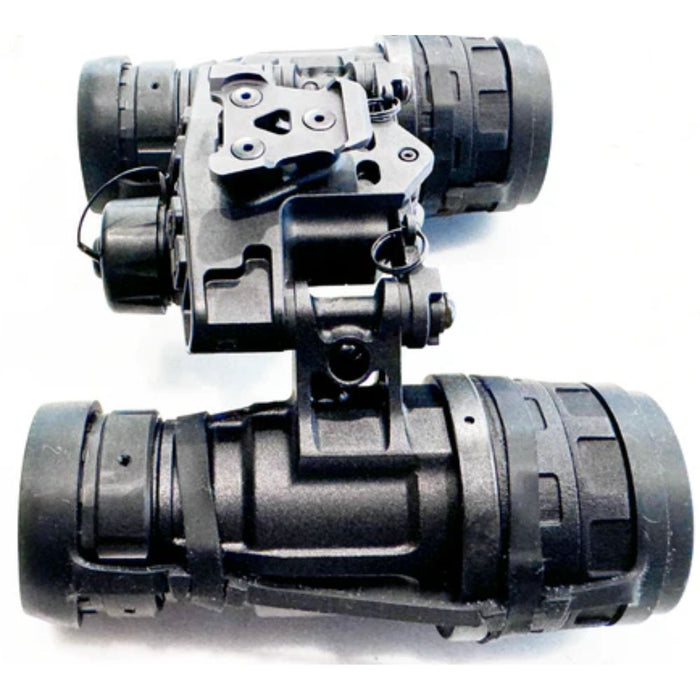

UANVB-FCR - Tough Aluminum Body, Manual Gain & IR for Full Control.

• The UANVB-FCR Manticore-R is a very strong night vision binocular made from the same metal used for airplanes. It is built for police, soldiers, and anyone who needs gear that works every time, no matter what. With easy-to-use buttons and a lifetime warranty on the housing, you can trust it to help you see in the dark when it matters most.
• Built to Survive a Beating: Unlike gear made of plastic, the Manticore-R is built from super-strong 7075-T6 aluminum. This housing is made to handle drops and rough use in the toughest conditions.

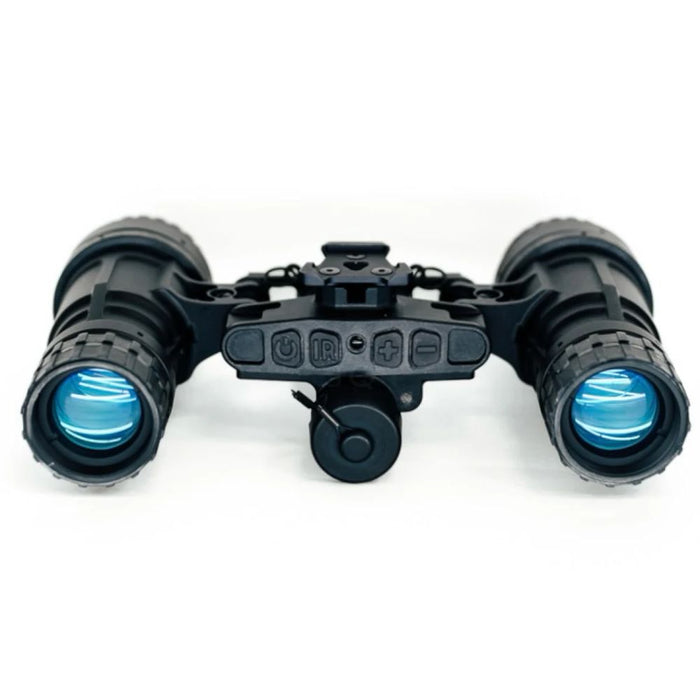

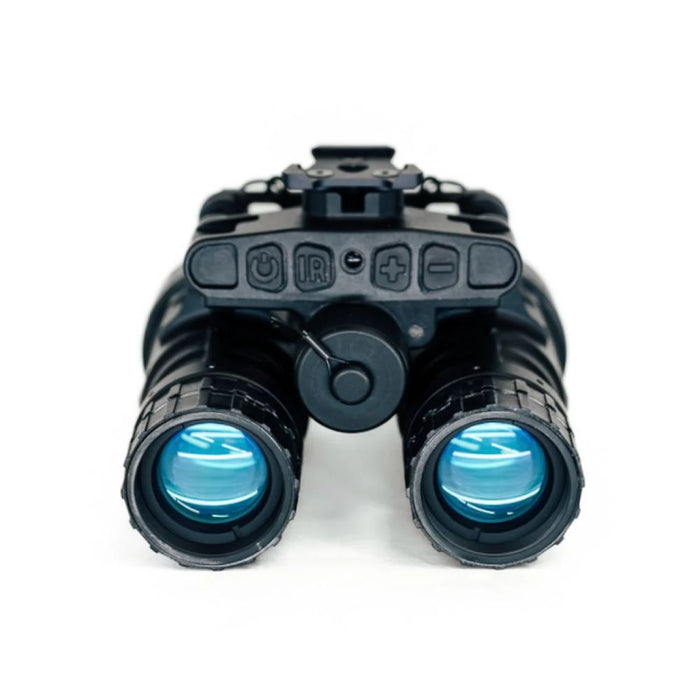

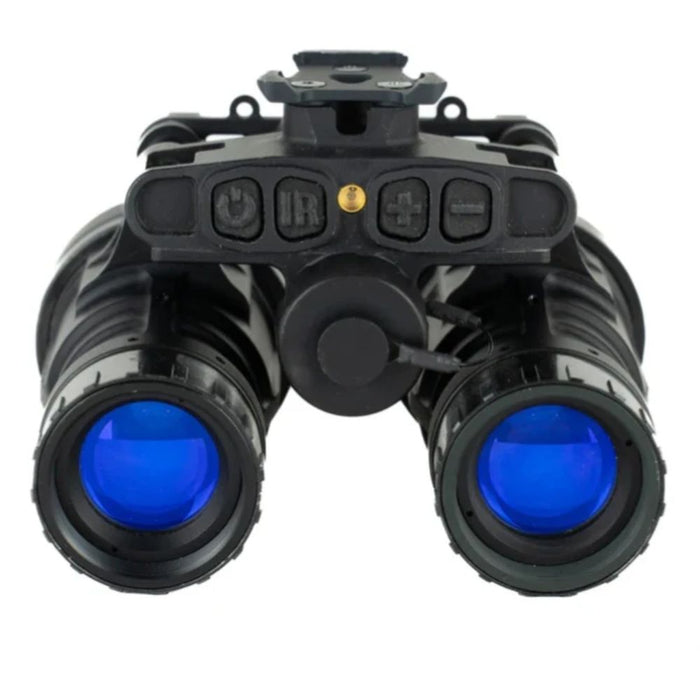

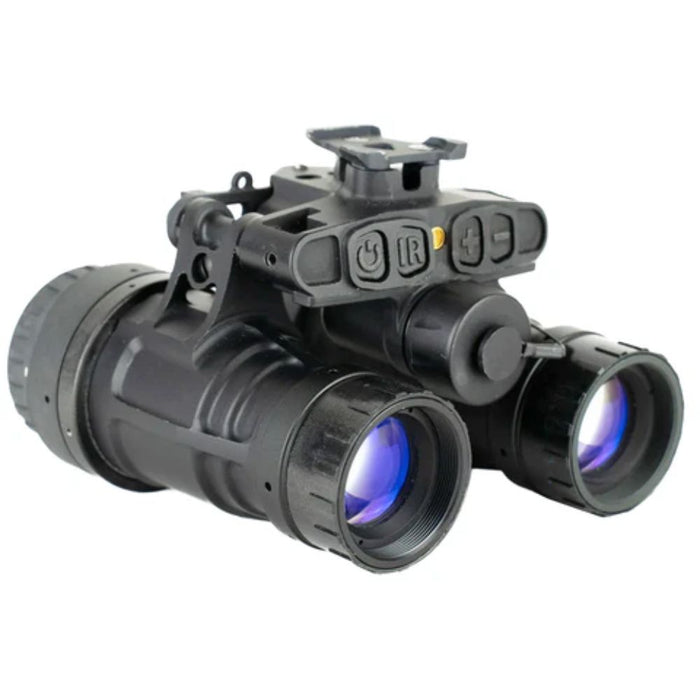

• Total Control with Manual Gain: Simple push buttons let you turn the power on and use the built-in infrared light. Thanks to the manual gain feature, you can also change the screen brightness for the perfect view without fumbling with controls.

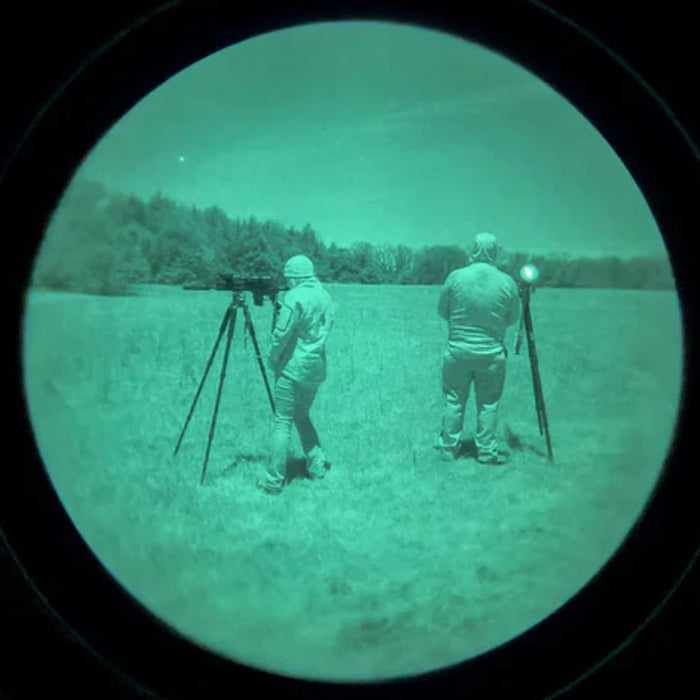

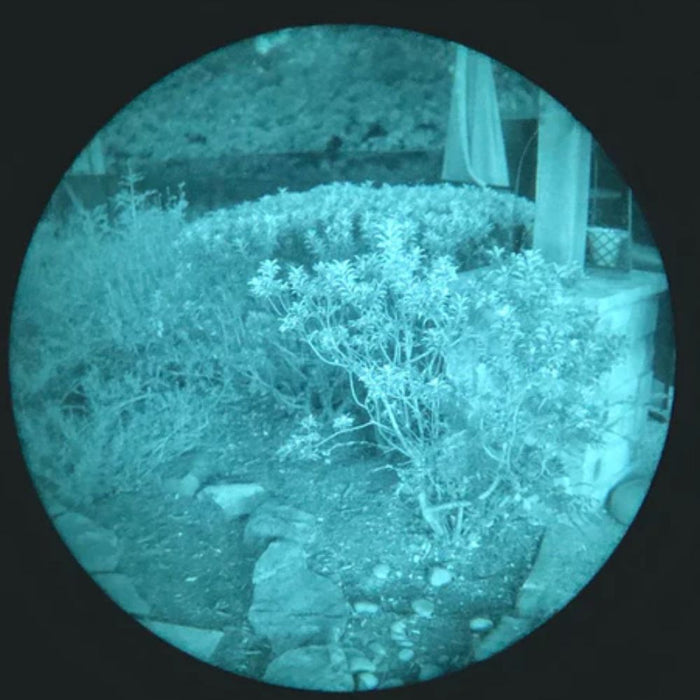

• Turn Pitch Black into Daylight: This device uses top-of-the-line Gen 3 white phosphor tubes to give you a sharp, black-and-white picture. When there's no light at all, the built-in IR illuminator acts like a flashlight that only you can see, lighting up the darkest spaces.
• Power Through the Longest Nights: You get over 26 hours of use from just one CR123A battery. If you need more time, you can plug in an external battery pack to keep going for over 100 hours.

Manticore-Ruggedized Review

What are some common accessories to add to the Nocturn UANVB-FCR?

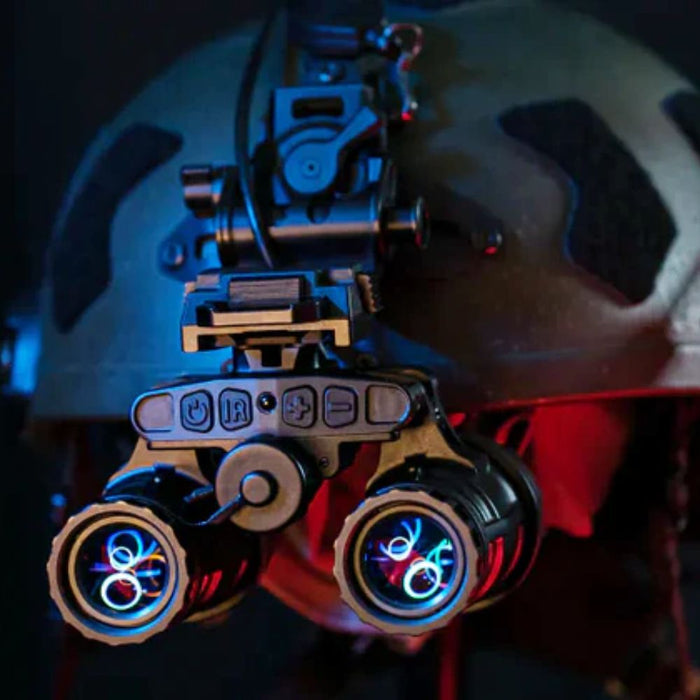

Helmet Platforms for the UANVB-FCR

• Ops Core FAST SF Gen 2: A lightweight helmet system featuring a durable shell and integrated NVG shroud, providing a secure and stable base for mounting the UANVB-FCR.
• Galvion Caiman TL: This helmet offers a rigid, streamlined platform with a built-in NVG mounting shroud, designed to support the UANVB-FCR system with minimal weight.
• Team Wendy Exfil SL: Features a hybrid composite shell and an integrated Wilcox machined aluminum shroud, creating a solid, reliable foundation for the UANVB-FCR and other headborne accessories.

Mounting & Integration with the UANVB-FCR

• Wilcox G24 Mount: The industry-standard mounting solution that interfaces directly with the UANVB-FCR’s dovetail. It provides a secure, wobble-free connection to the helmet shroud and allows the operator to stow the binocular flat against the helmet.
• Ops Core Rail Link: An adapter system that enhances the helmet platform by allowing seamless integration of communication headsets and other rail-mounted gear, ensuring they do not interfere with the function of the UANVB-FCR.

System Balancing & Power for the Ultralight Articulating Night Vision Binocular - Full Control Ruggedized

• Ops Core Counterweight: A modular weight system designed to attach to the rear of the helmet. It offsets the forward-mounted weight of the UANVB-FCR, significantly reducing operator neck fatigue and improving system stability.
• Team Wendy Counterweight: This kit includes customizable weights in a secure pouch that attaches to the back of the helmet, providing an effective counterbalance to the UANVB-FCR for enhanced comfort during extended use.
• Wilcox Aeronox Battery Pack: Serves as both a power source and a counterweight. It connects directly to the UANVB-FCR's external power port to dramatically extend operational time while also helping to balance the helmet system.

Target Designation with the Ultralight Articulating Night Vision Binocular - Full Control Ruggedized

• RIX RIP 3C IR Laser: A weapon-mounted aiming and illumination device that works in tandem with the UANVB-FCR. Its infrared laser is visible only through the night vision binocular, allowing for precise target designation in complete darkness.

Nocturn Industries UANVB-FCR Features & Specifications

The UANVB-FCR "Manticore-R" is built for professionals who need gear that will not fail. Unlike night vision with plastic housings, the Manticore-R is machined from super-strong, aerospace-grade 7075-T6 aluminum, making it tough enough to survive the most demanding missions. It combines this battlefield-ready durability with a full set of easy-to-use digital controls for power, brightness, and infrared illumination. This is the night vision binocular you can trust to give you a rugged, reliable advantage in the dark.

Key Features

• Ruggedized Aluminum Housing: The housing is machined from high-strength 7075-T6 aerospace aluminum for extreme durability in harsh environments.
• Digital Manual Gain Control: Easy-to-press buttons let you adjust the image brightness for the perfect view in any light condition.

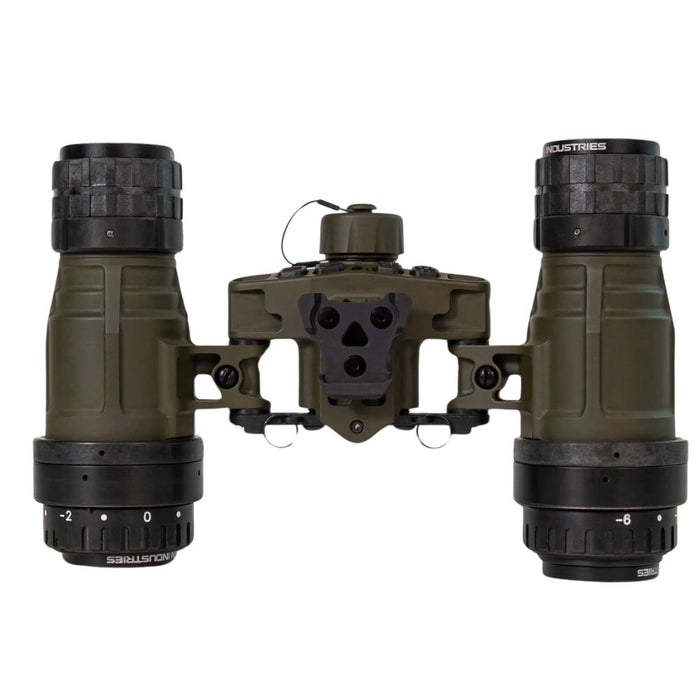

• Articulating Pods with Individual Shut-Off: Each optical pod can be flipped up independently and automatically powers off to save battery and prevent light splash.
• Onboard IR Illuminator: A built-in infrared light allows you to see in complete darkness, with an indicator inside the unit to show when it's on.
• External Power Port: A standard LEMO 00B port allows you to connect an external battery pack for extended run times of over 100 hours.
• Lifetime Housing Warranty: The Manticore-R housing comes with a lifetime repair or replacement warranty from the manufacturer.

Specifications

• Housing Material: 7075-T6 Aerospace Grade Aluminum.
• Housing Weight: 6.35 oz (180 g).
• Device Weight (Standard Optics): 21.52 oz (610 g).
• Device Weight (Lightweight Optics): 17.07 oz (484 g).
• Onboard Power: One (1) CR123A Battery.
• Battery Life (CR123A): 26+ hours.
• Durability Rating: Waterproof (IP68+) and exceeds MIL-STD-810H standards.

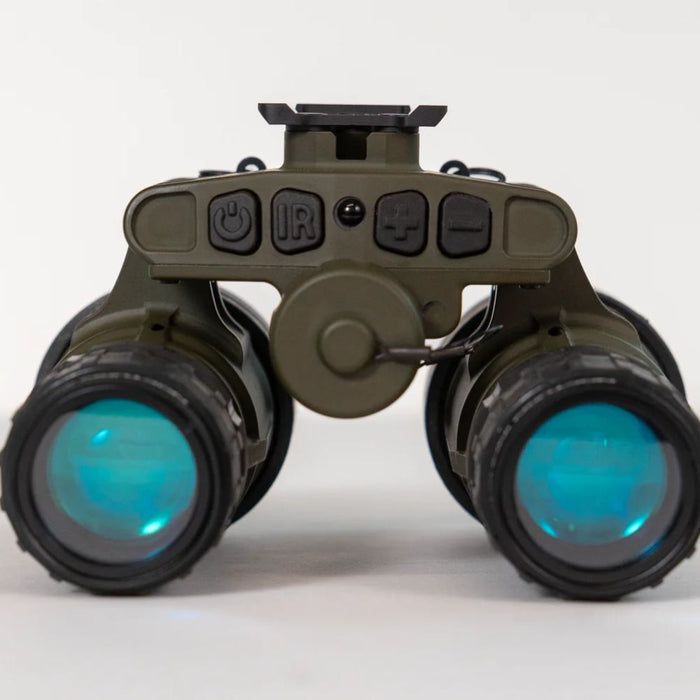

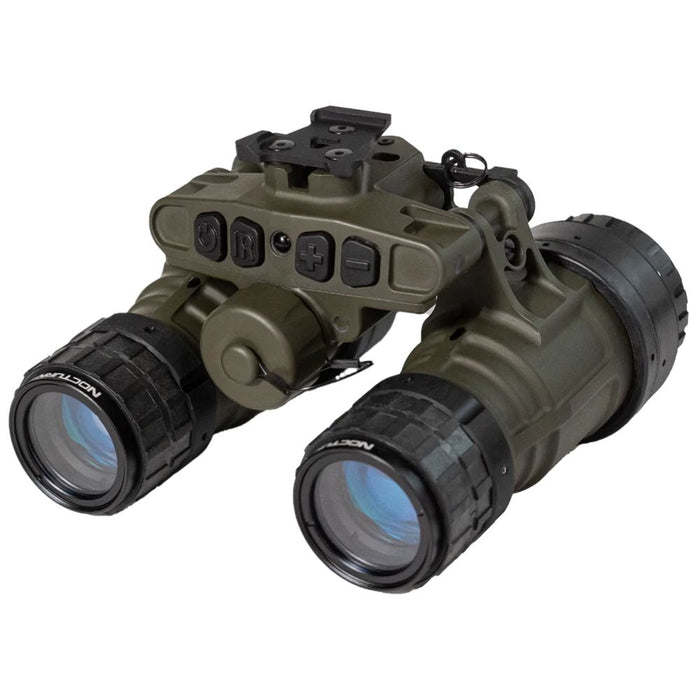

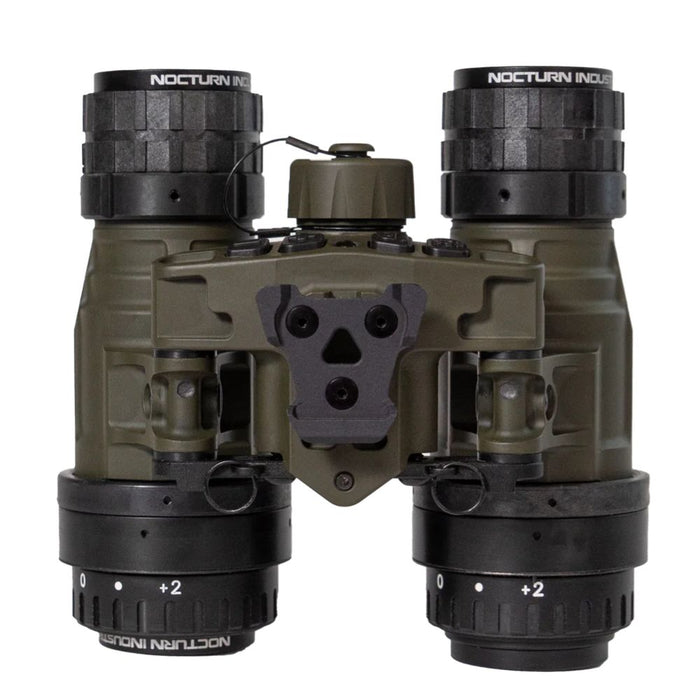

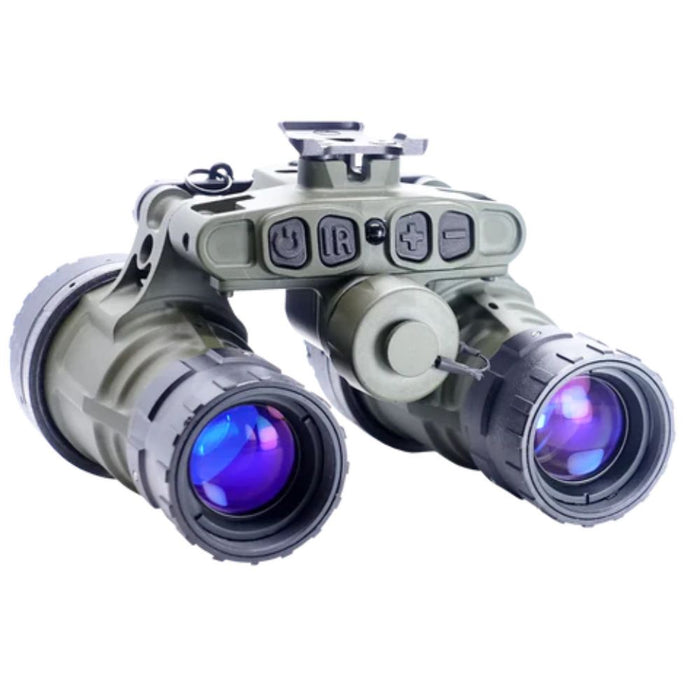

• Finish Options: Mil-Standard Type III Hard Anodize (Black) or H-Series Cerakote (Coyote Brown and OD Green).

What's in the box of the UANVB-FCR?

• (1) UANVB-FCR "Manticore-R".
• (2) Articulating Optical Pods.
• (2) Objective Lens Assemblies with infinity stop rings.
• (2) Eyepiece Lens Assemblies with diopter adjustment.
• (1) Onboard Battery Cap for a CR123A battery.
• (1) Set of Onboard Digital Controls for power, manual gain, and IR illumination.

Nocturn Industries Manticore-Ruggedized FAQs

What does "Ruggedized" mean?

 It means this goggle is extra tough. It's made from a strong metal called 7075 aluminum, not plastic. This helps it survive drops and hard use without breaking.

What does it mean that the pods are "articulating"?

 "Articulating" means each side can flip up on its own. You can use both eyes, just one eye, or flip them both up and out of the way. When you flip one side up, it turns off to save power.

Is the Manticore-R waterproof?

Yes. It is rated IP68+, which means it is sealed to keep out water and dust. It is also tested to military standards for durability.

What is "manual gain"?

Manual gain lets you control the brightness of the image you see. You can make it brighter in very dark areas or dimmer when there's more light. This helps you get the clearest picture possible.

What is the IR illuminator for?

The IR (infrared) illuminator is like a flashlight that only night vision can see. You use it when you are in total darkness, like inside a building with no lights.

How long does the battery last?

A single CR123A battery will last for over 26 hours. You can also buy caps to use AA or AAA batteries. For even longer missions, you can plug in an outside battery pack for more than 100 hours of power.

How does Atomic Defense make sure the goggles are set up right?

 We set up and test every single unit ourselves in-house. We use a special machine called a Hoffman ANV-126A to perfectly align, or "collimate," the goggles. This makes sure both eyes see one clear image so you don't get headaches or eye strain. Every unit comes with a full test report so you can see the results.

Can I get the Manticore-R in different colors or with special lenses?

Yes. Housings in colors like Coyote Brown and OD Green are available. You can also get special lightweight lenses, like RPO 4.0 optics. These special orders are available by "Request for Quote" (RFQ), so you will need to contact us directly for pricing and to place your order.
