iRay RH25 V2: Advanced Multifunction Thermal Optic, Engineered for Peak Performance and Adaptability

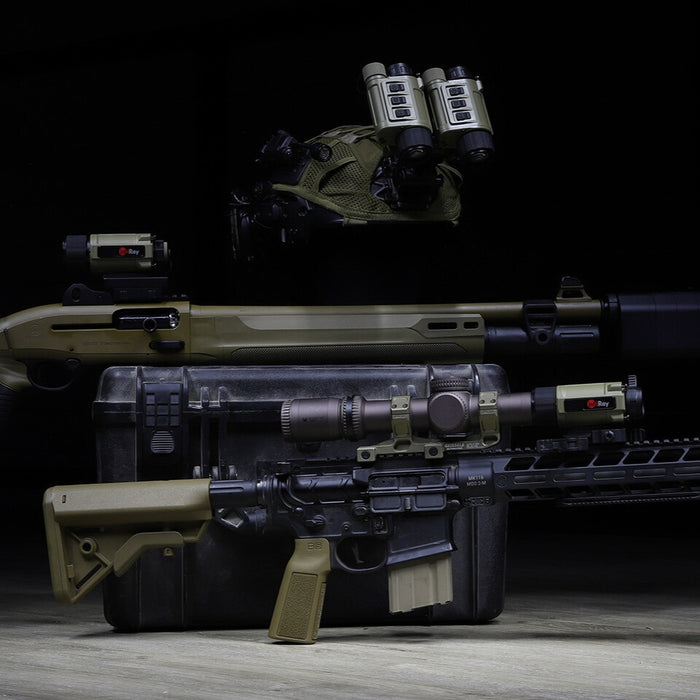

• The iRay RICO Micro V2, aka “iRay RH25 V2” is an advanced thermal imaging monocular engineered for enhanced performance and user convenience, representing an evolution of the highly versatile RICO MICRO series. It's designed to serve multiple roles, including as a handheld scanner, helmet-mounted monocular, dedicated weapon sight, or a thermal clip-on.
• Experience superior operational adaptability with the RH25 V2. This device seamlessly transitions between roles, offering distinct user interfaces for clip-on and helmet modes, ensuring optimal performance whether you're conducting covert surveillance, navigating in low-light conditions, or engaging targets. Its compatibility with existing mounting systems like the MUM rail and Picatinny MIL-STD-1913 rail, plus the optional PICTAIL system, allows for straightforward integration into your current gear setup.
• Benefit from significantly enhanced image clarity and smoother viewing. The RH25 V2 features an upgraded 60Hz refresh rate for reduced lag, a high-resolution 1440x1080 AMOLED display that's 80% larger and has 97% more pixels than the previous generation, and a cutting-edge 12µm InfiRay MICRO II 640 sensor with an exceptional thermal sensitivity of ≤15mK (NETD). This translates to a sharper, more detailed thermal image, crucial for positive identification and situational awareness in challenging environments.
• Gain a distinct tactical advantage through user-centric features designed for demanding field conditions. The RH25 V2 incorporates recoil-activated video and audio recording, ensuring critical moments are captured hands-free. It boasts improved ergonomics with a new focusing mechanism, a lighter machined magnesium alloy housing, an extended battery life of over 6.5 hours from a common 18650 rechargeable battery, and a robust IP67 ingress protection rating. These features ensure reliability, durability, and ease of use when every second counts.

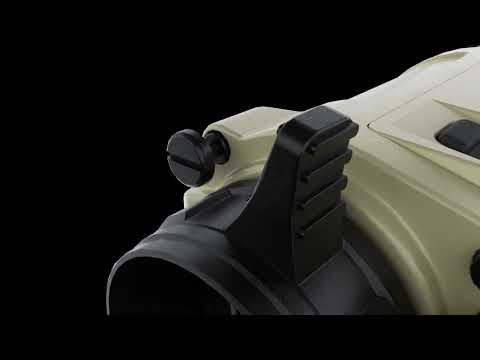

RH25 V2 Review

What are some common accessories to add to the RH25 V2?

• Flip-to-Side Mount for RICO Micro Series (AC55): Maximize your operational flexibility by pairing the RH25 V2 with other optics. This mount allows for rapid transition of the thermal imager, moving it in or out of the line of sight with a simple flip, crucial for dynamic scenarios where quick adaptation is key.
• RICO MICRO Compatible Mounting Shoe for Dual or Obverse Mounting (AC53): Enhance the RH25 V2's integration with diverse weapon platforms using this specialized mounting shoe. It offers versatile positioning, including dual or obverse setups, enabling customized configurations for optimal eye relief and co-witnessing with other tactical equipment.
• RICO MICRO PICTAIL Helmet/Weapon Shoe (AC52): Expand the RH25 V2's versatility across multiple roles with this essential mounting shoe. It facilitates seamless transitions between helmet-mounted, weapon-mounted, and handheld configurations, ensuring your thermal optic is always ready for the task at hand, whether it's hands-free navigation or precise targeting. When paired with the MQD mount, it offers an adjustable footprint on any standard Picatinny rail, optimizing eye relief for both standalone and clip-on applications.
• RICO MICRO MQD Mount (AC36): Achieve a secure and rapidly adaptable weapon mounting solution for your RH25 V2 with the MQD (Quick Detach) Mount. Used in conjunction with the AC52 PICTAIL shoe, this system provides an adjustable footprint on any standard Picatinny rail, with over 4.5 inches of rear offset in standalone mode and a minimal 1.5 inches in clip-on mode, making it ideal for shorter platforms. The MQD mount features an intuitive locking lever for quick attachment and detachment without sacrificing stability.

iRay RH25 V2 Features & Specifications

The iRay RH25 V2 is an advanced, multifunction thermal imaging monocular engineered for exceptional performance and versatility across diverse operational environments. It integrates a high-resolution 640x480, 12µm InfiRay Micro II thermal sensor with a thermal sensitivity of less than 15mK (NETD <15mK), delivering exceptionally clear and detailed imagery. This is displayed on a sharp 1440x1080 AMOLED screen with a smooth 60Hz refresh rate. The optical system includes a 25mm f/1.0 germanium objective lens, providing 1X native magnification with up to 4X digital zoom, and a detection range of 1375 yards.

The RH25 V2 is designed for adaptability, functioning as a handheld scanner, helmet-mounted monocular, dedicated weapon sight, or a thermal clip-on. It features recoil-activated video and audio recording, with footage stored on 64GB of internal memory. Connectivity is modern, with a USB-C port for data transfer and external power. Power is supplied by a rechargeable 18650 battery, offering over 6.5 hours of run time. The unit is housed in a lightweight yet durable machined magnesium alloy body, ensuring reliability with an IP67 ingress protection rating and a recoil tolerance of 1000 g/s². Enhanced ergonomics, including a new focusing mechanism and 45mm eye relief, contribute to user comfort and efficiency in the field.

Key Features of the iRay RH25 V2:

• Advanced Thermal Core & Display: Features a 640x480, 12µm InfiRay Micro II sensor with a thermal sensitivity of less than 15mK (NETD <15mK). This is paired with a high-resolution 1440x1080 AMOLED display and an upgraded 60Hz refresh rate, ensuring exceptionally clear, detailed, and smooth thermal imagery critical for target identification.
• Multifunctional Versatility: Engineered for adaptability, the RH25 V2 can be seamlessly deployed as a handheld scanner for reconnaissance, a helmet-mounted monocular for hands-free navigation, a dedicated weapon sight for precise engagement, or a thermal clip-on in conjunction with day optics.
• Recoil-Activated Recording & Ample Storage: The device includes recoil-activated video and audio recording, ensuring that critical moments during engagement or observation are automatically captured without manual intervention. All footage is stored on a generous 64GB internal memory.
• Robust & Ergonomic Design: Built with a machined magnesium alloy housing for reduced weight (11.3 oz) and enhanced durability. It boasts an IP67 ingress protection rating for resistance to dust and water, and can withstand recoil up to 1000 g/s² (suitable for .300 Win./7mm Mag). Improved ergonomics include a new focusing mechanism with a lever add-on and a comfortable 45mm eye relief.
• Enhanced Connectivity & Power: Features a modern USB-C port for simplified file transfer and the ability to power the unit from an external battery pack. It also includes Wi-Fi for mobile app connectivity and Bluetooth for use with a remote control. The RH25 V2 offers an extended run time of over 6.5 hours from a single, common 18650 rechargeable battery.

What's in the box of the RH25V2?

• iRAYUSA RICO MICRO V2
• (1) 25mm Objective Lens Cap
• (2) Eyeguards
• (1) OEM Rifle Mount (1.93 inch)
• (2) M4×8mm Flat Head Screws
• (1) 2.5mm and 3mm Hex Keys
• (1) Lens Lever
• (1) Bluetooth Remote
• (2) 18650 Batteries
• (1) 18650 Battery Charger
• (1) Battery Cap for Short 18650 Battery
• (1) USB-C Cable
• (1) USB Power Adapter
• (1) Hard Case
• (1) Lens Cloth
• (1) User Manual

RH25 V2 FAQs

What are the most significant improvements in the RH25 V2 model?

The RH25 V2 features several critical enhancements. Its internal sensor now has an improved thermal sensitivity (NETD) of less than 15mK, a significant upgrade from the previous 40mK. The image refresh rate has been increased from 50Hz to a smoother 60Hz. Additionally, the display resolution is now a crisp 1440x1080p.

How does the RH25 V2 enhance the operator's experience in the field?

The RH25 V2 is designed for superior field performance and comfort. It is 10% lighter than its predecessor and offers an additional hour of battery life. Ergonomics are improved with a new focusing mechanism featuring a lever with an add-on for easier adjustments, even with gloved hands. The eyepiece has been enlarged from 17mm to 20mm for greater comfort during extended use, and the overall eye relief is a generous 45mm. It also includes recoil-activated video and audio recording, allowing operators to focus on the mission while the device captures critical footage.

What are the imaging and recording capabilities of the RH25 V2?

The RH25 V2 provides sharp, detailed thermal imagery with its 640x480 sensor resolution and 1440x1080p AMOLED display. It supports onboard video and audio recording, including a recoil-activated video feature, ensuring important moments are captured seamlessly. All recordings are stored on a substantial 64GB internal memory, capable of holding up to 1600 images and 40 hours of video.

How versatile is the RH25 V2 for different operational scenarios?

The RH25 V2 is exceptionally versatile, designed to function effectively in multiple roles. It can be used as a handheld thermal scanner for observation, a helmet-mounted monocular for hands-free operation, a dedicated weapon sight with 7 reticle options, or as a thermal clip-on in front of day optics (up to 6x magnification). It features distinct user interfaces optimized for clip-on and helmet modes.

What power options are available for the RH25 V2, and what is the expected battery life?

The RH25 V2 is powered by a common 18650 rechargeable battery cell, with two batteries included. Each battery provides an operational run time of over 6.5 hours. Additionally, the device features a USB-C port that allows it to be powered from an external battery pack for extended field use.

How durable is the RH25 V2 for use in demanding environments?

The RH25 V2 is built to withstand rigorous operational use. Its housing is constructed from machined magnesium alloy, providing a lightweight yet robust frame. It has an IP67 ingress protection rating, meaning it's dust-tight and can withstand water immersion up to 1 meter for 30 minutes. Furthermore, it's rated to handle recoil up to 1000 g/s², making it suitable for use on calibers like .300 Win./7mm Mag. It can operate in temperatures ranging from -4°F to 122°F (-20°C to 50°C).

Where can someone purchase the iRay RH25 V2?

You can purchase the iRay RH25 V2 through Atomic Defense, an officially authorized distributor of iRay products.

Acquiring your RH25 V2 from Atomic Defense ensures you receive a genuine, high-performance thermal optic. Furthermore, you'll benefit from our reliable customer service and commitment to top-quality products. As an authorized distributor, Atomic Defense provides comprehensive support, including potential warranty assistance and expert guidance regarding the features and operation of the iRay RH25 V2. We recommend contacting Atomic Defense to secure your unit from a trusted and authorized source.

What is the correct and official terminology to use when referring to the iRay RH25 V2, and which common terms are not official designations?

When referring to this advanced thermal imaging device, the official and most accurate terms are iRay Rico Micro V2 (often followed by the specific model, RH25 V2, as it's part of this series), RH25 V2 (as the direct model identifier), and iRay RH25 V2 (a commonly accepted and clear reference to the model from iRay). These designations ensure clarity and precision.

While other terms might be used colloquially or in search queries, the following are not official product names, though some indicate aspects of the product or how users might search for it:

• iRay RH25 V2 for sale: This phrase is typically used in sales listings or search queries to find the product available for purchase, rather than being an official name for the device itself.
• rh25v2 / iRay rh25v2: These are informal stylings that omit the space (e.g., "rh25 v2" or "iRay RH25 V2"). While understandable, they are not the formally presented product names.
• Micro RH25 V2: This term combines "Micro" from the "RICO MICRO" series name with the specific model "RH25 V2". It points to the correct product line but isn't the full official model designation on its own.
• InfiRay RH25 V2: "InfiRay" is the overarching brand of the manufacturer (InfiRay Outdoor) and the sensor technology (InfiRay Micro II sensor). While the product is from InfiRay, the common product branding in these documents uses "iRay" or specifies the "RICO Micro" series.
• RH 25 V2: This is a minor stylistic variation of the acceptable "RH25 V2," with an added space. It clearly refers to the correct model.
